Install Oracle 19c 2 Nodes RAC on Oracle Linux 7.6 Virtual box

    Software Requirements.

    1. Download Latest Oracle VM Virtual box for your suitable host OS from https://www.virtualbox.org/wiki/Downloads

    2. Download Oracle Linux 6.7 (64-bit) from Oracle edelivery site. https://www.edelivery.oracle.com

    3. Download Oracle 19c GRID and RDBMS software from oracle edelivery.

    System Readiness:

    Execute the below commands to quickly set up the system prerequisites on both servers.

    sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
    systemctl stop firewalld
    systemctl disable firewalld
    systemctl stop chronyd.service
    systemctl disable chronyd.service
    mv /etc/chrony.conf /etc/chrony.conf.bak

    groupadd -g 54331 oinstall
    groupadd -g 54332 dba
    groupadd -g 54333 oper
    groupadd -g 54334 backupdba
    groupadd -g 54335 dgdba
    groupadd -g 54336 kmdba
    groupadd -g 54337 asmdba
    groupadd -g 54338 asmoper
    groupadd -g 54339 asmadmin
    groupadd -g 54340 racdba

    useradd -m -u 54332 -g oinstall -G dba,asmadmin,asmdba,asmoper -d /home/grid -s /bin/bash  grid
    echo "grid" | passwd --stdin grid
    useradd -m -u 54331 -g oinstall -G dba,oper,backupdba,dgdba,kmdba,asmdba,asmadmin,racdba -d /home/oracle -s /bin/bash  oracle
    echo "oracle" | passwd --stdin oracle
    mkdir -p /u01/app/grid
    mkdir -p /u01/app/19.2/grid
    mkdir -p /u02/app/oracle
    mkdir -p /u02/app/oracle/product/19.2
    chmod -R 775 /u01
    chmod -R 775 /u02
    chown -R grid:oinstall /u01
    chown -R oracle:oinstall /u02/app/oracle

    Update the bash profile file for grid, oracle and root users respectively as below.

    In grid’s bash profile:

    export ORACLE_SID=+ASM1
    export ORACLE_BASE=/u01/app/grid
    export ORACLE_HOME=/u01/app/19.2/grid
    export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:$PATH
    umask 22

    In oracle’s bash profile:

    export ORACLE_SID=orcl
    export ORACLE_BASE=/u02/app/oracle
    export ORACLE_HOME=$ORACLE_BASE/product/19.2
    export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:$PATH
    umask 22

    In root’s bash profile:

    export ORACLE_HOME=/u01/app/19.2/grid
    export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:$PATH

    Install the required RPMs as below:

    yum install -y oracle-database-preinstall-18c.x86_64

    yum install kmod-oracleasm
    yum install oracleasm-support oracleasmlib oracleasm-`uname -r`

    Configure oracleasm utility.

    oracleasm configure -i

    Update the ‘/etc/hosts’ file with suitable IP Addresses and Hostnames.

    #public ip
    192.168.56.115  sspdb01.localdomain sspdb01
    192.168.56.116  sspdb02.localdomain sspdb02

    #Vip
    192.168.56.118 sspdb01-vip.localdomain sspdb01-vip
    192.168.56.119 sspdb02-vip.localdomain  sspdb02-vip

    #private ip
    10.10.10.21   sspdb01-priv.localdomain sspdb01-priv
    10.10.10.22   sspdb02-priv.localdomain sspdb02-priv

    #SCAN ip
    192.168.56.120 sspdb-cluster sspdb-cluster-scan

    Make sure the public and Private networks are reachable from both nodes.
    The VIP network should not be reachable as of now. once the setup is done this virtual network will be enabled automatically.
    Make sure the 3 Scan IPs are resolvable via nslookup utility; since its just a lab setup I used a single scan IP as mentioned in above ‘/etc/hosts’ file.

    Cluster (Grid) Software Setup:

    In 19c, the Grid Clusterware setup is slightly differed with previous traditional installations. Here we have to Unzip the grid software to Grid’s ORACLE_HOME directly and run the gridSetup.sh script.

    as root:
    cd /media/sf_Software/19c/
    unzip -q V981627-01.zip -d /u01/app/19.2/grid
    chown -R grid:oinstall /u01
    As grid user:
    cd /u01/app/19.2/grid/
    ./gridSetup.sh

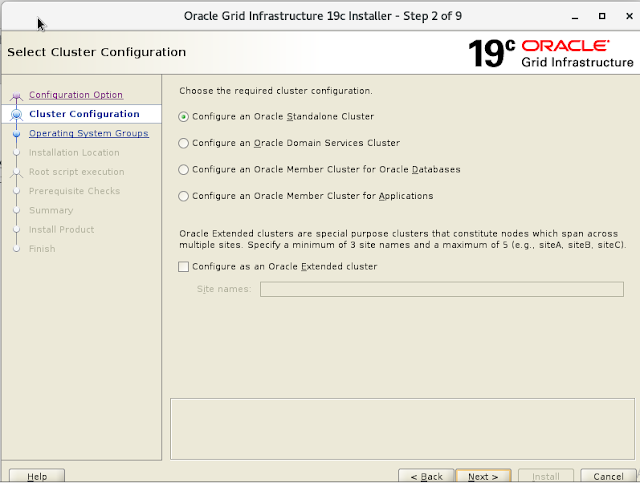

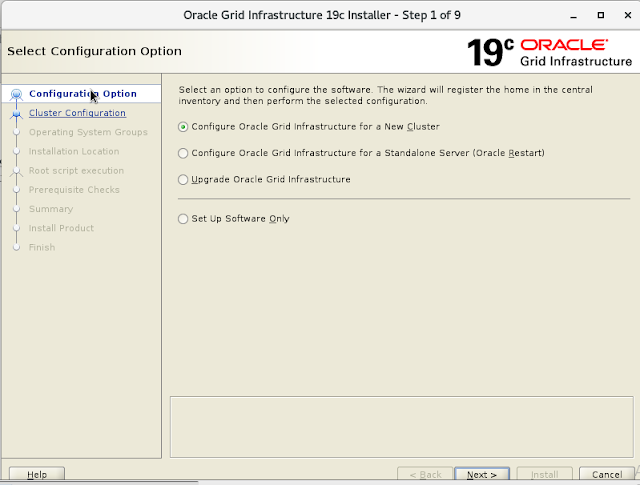

    Unlike the previous versions, you can see various types cluster setups available in 19c.
    To know more about each type cluster configuration and it’s purpose,  please refer to Oracle Document grid-infrastructure-installation-and-upgrade 19c.
    However, here is the generic installation so I will be choosing the default  standalone cluster.

    We can see a new SCAN option called Shared, for more information refer to grid-infrastructure-installation-and-upgrade 19c.
    Selecting the default Local SCAN option here.

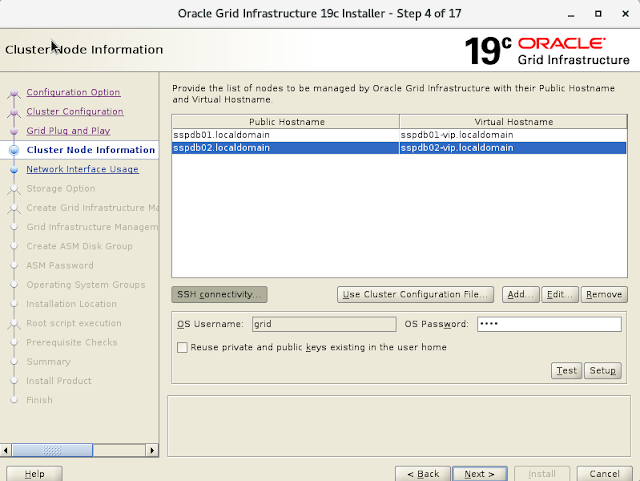

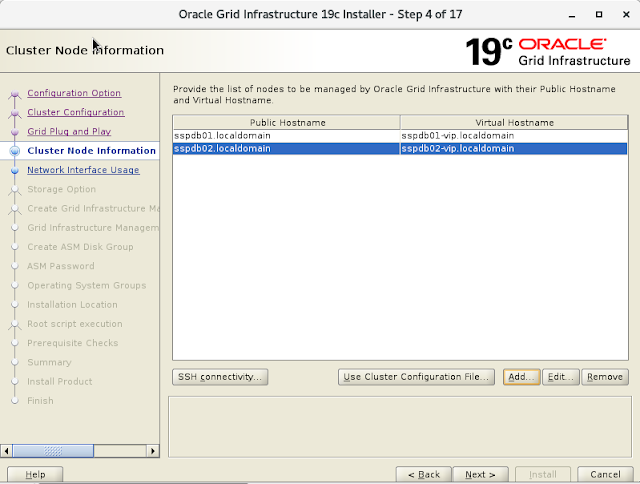

    Add the 2nd node’s details and setup SSH connectivity for Grid user.

    self-explanatory

    self-explanatory

    self-explanatory

    self-explanatory

    Choose suitable interfaces as below.

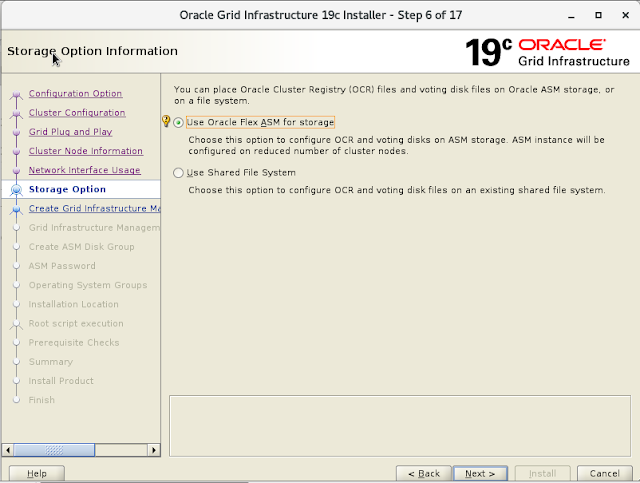

    As usual choose ASM Storage.

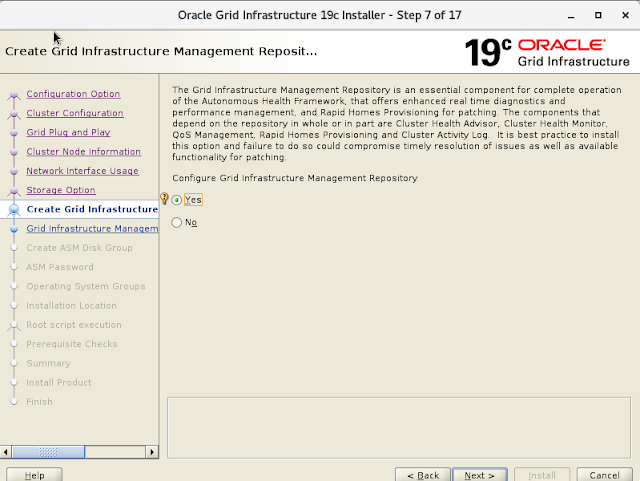

    I chose the Grid Infrastructure Management Repository (GIMR) to be configured as this will be useful for debugging cluster related failures.

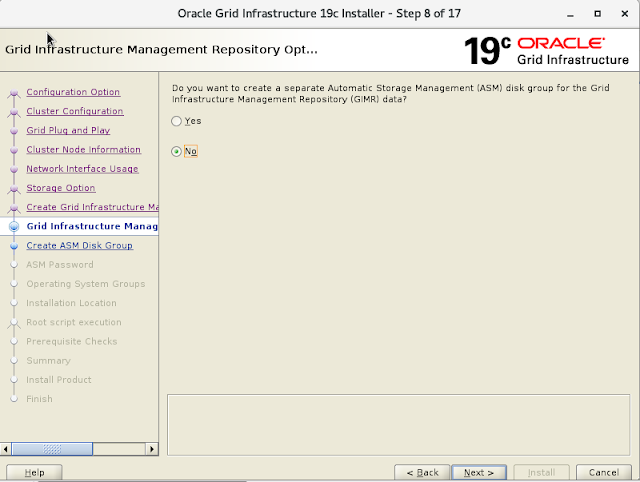

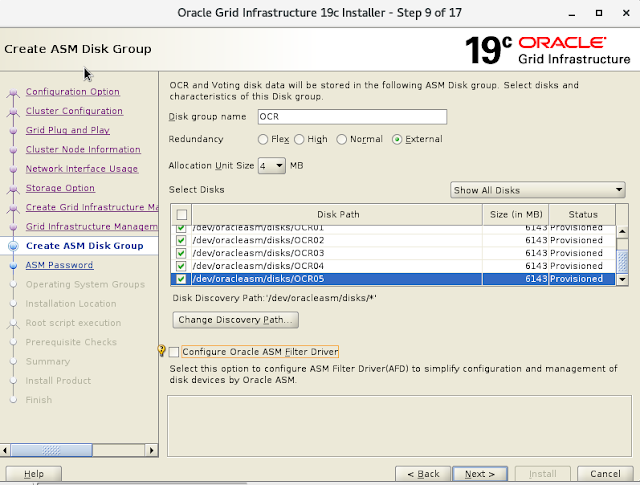

    I will be using same Disk group for OCR/VD/GIMR here, though we have the option to different disk group for GIMR.

    Below are the required OCR disk group capacity depending on the Redundancy which will also holds GIMR data.

    External: around 30 GB
    Normal: around 60 GB
    High : around 90 GB.

    I selected External Redundancy

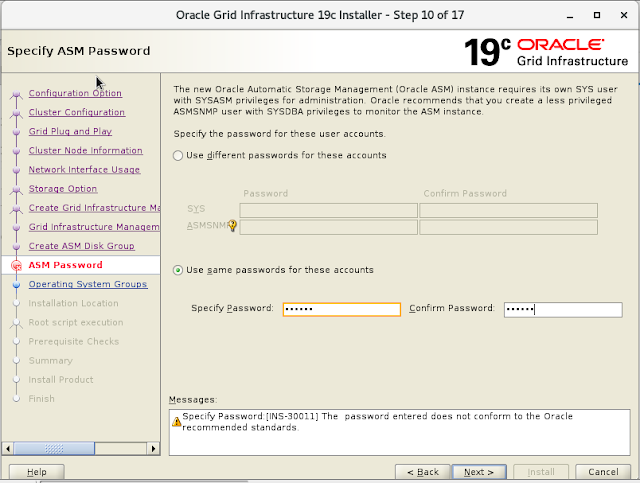

    self-explanatory

    self-explanatory

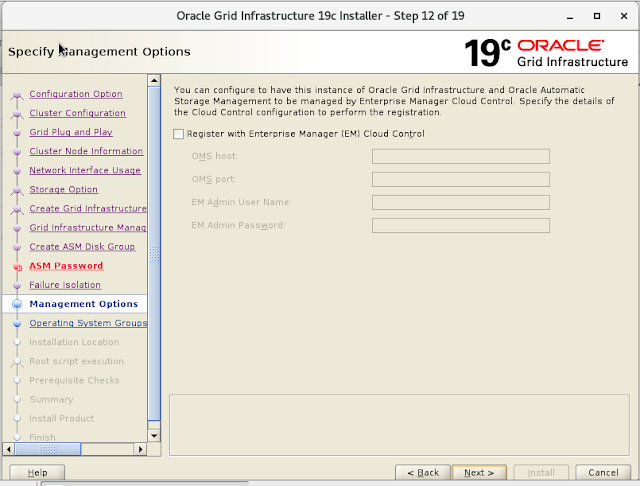

    self-explanatory

    self-explanatory

    self-explanatory

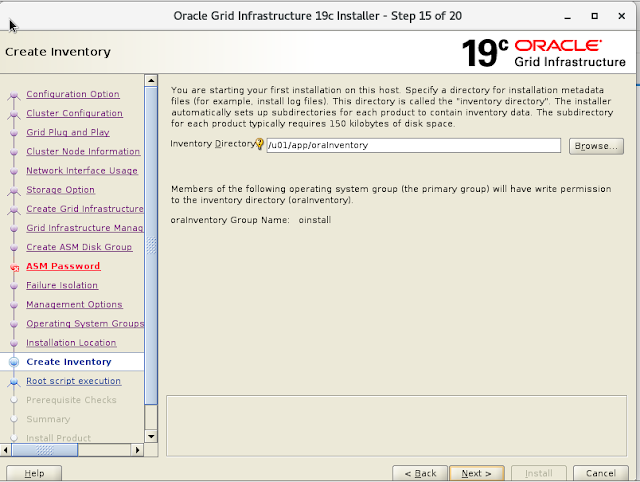

    self-explanatory

    We have the option to provide the root or equivalent sudo credentials in the below step. However I would like to see what exactly it does during the root scripts execution, the credentials are not passed.

    self-explanatory

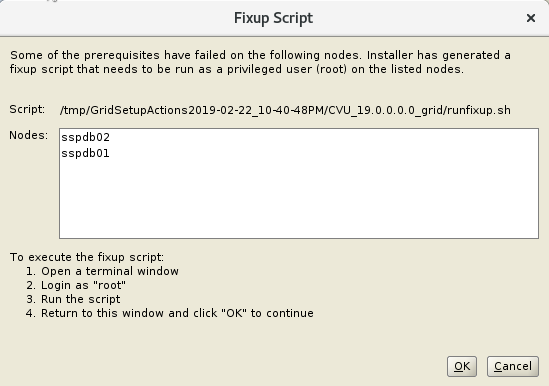

    Run the ‘Fix and Check Again’ and also resolve the relevant warnings/Failed checks.

    self-explanatory

    self-explanatory

    Once make sure we are good to proceed.

    self-explanatory

    self-explanatory

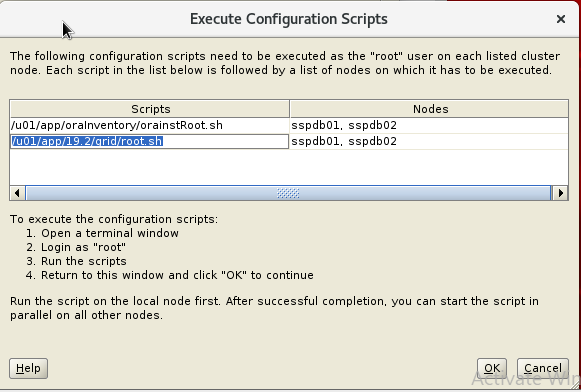

    You can observe the changes in root.sh output as compared to previous installations.

    1st Node:

    [[email protected] rpm]# /u01/app/oraInventory/orainstRoot.sh
    Changing permissions of /u01/app/oraInventory.
    Adding read,write permissions for group.
    Removing read,write,execute permissions for world.

    Changing groupname of /u01/app/oraInventory to oinstall.
    The execution of the script is complete.
    [[email protected] rpm]# /u01/app/19.2/grid/root.sh
    Performing root user operation.

    The following environment variables are set as:
        ORACLE_OWNER= grid
        ORACLE_HOME=  /u01/app/19.2/grid

    Enter the full pathname of the local bin directory: [/usr/local/bin]:
       Copying dbhome to /usr/local/bin ...
       Copying oraenv to /usr/local/bin ...
       Copying coraenv to /usr/local/bin ...


    Creating /etc/oratab file...
    Entries will be added to the /etc/oratab file as needed by
    Database Configuration Assistant when a database is created
    Finished running generic part of root script.
    Now product-specific root actions will be performed.
    Relinking oracle with rac_on option
    Using configuration parameter file: /u01/app/19.2/grid/crs/install/crsconfig_params
    The log of current session can be found at:
      /u01/app/grid/crsdata/sspdb01/crsconfig/rootcrs_sspdb01_2019-02-23_00-25-26AM.log
    2019/02/23 00:26:07 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
    2019/02/23 00:26:08 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
    2019/02/23 00:26:08 CLSRSC-363: User ignored prerequisites during installation
    2019/02/23 00:26:08 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
    2019/02/23 00:26:17 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
    2019/02/23 00:26:20 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.
    2019/02/23 00:26:20 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.
    2019/02/23 00:26:23 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.
    2019/02/23 00:29:25 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.
    2019/02/23 00:30:00 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
    2019/02/23 00:30:01 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
    2019/02/23 00:30:39 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
    2019/02/23 00:30:40 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
    2019/02/23 00:31:06 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
    2019/02/23 00:31:07 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
    2019/02/23 00:32:06 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
    2019/02/23 00:32:32 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
    2019/02/23 00:32:53 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
    2019/02/23 00:33:11 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.

    ASM has been created and started successfully.

    [DBT-30001] Disk groups created successfully. Check /u01/app/grid/cfgtoollogs/asmca/asmca-190223AM123423.log for details.

    2019/02/23 00:36:42 CLSRSC-482: Running command: '/u01/app/19.2/grid/bin/ocrconfig -upgrade grid oinstall'
    CRS-4256: Updating the profile
    Successful addition of voting disk bec6dfe80d344f21bf747466dd2342aa.
    Successfully replaced voting disk group with +OCR.
    CRS-4256: Updating the profile
    CRS-4266: Voting file(s) successfully replaced
    ##  STATE    File Universal Id                File Name Disk group
    --  -----    -----------------                --------- ---------
     1. ONLINE   bec6dfe80d344f21bf747466dd2342aa (/dev/oracleasm/disks/OCR05) [OCR]
    Located 1 voting disk(s).
    2019/02/23 00:42:07 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
    2019/02/23 00:44:59 CLSRSC-343: Successfully started Oracle Clusterware stack
    2019/02/23 00:44:59 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
    2019/02/23 00:53:03 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
    2019/02/23 01:00:02 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded


    2nd Node:

    [[email protected] ~]# /u01/app/19.2/grid/root.sh
    Performing root user operation.

    The following environment variables are set as:
        ORACLE_OWNER= grid
        ORACLE_HOME=  /u01/app/19.2/grid

    Enter the full pathname of the local bin directory: [/usr/local/bin]:
       Copying dbhome to /usr/local/bin ...
       Copying oraenv to /usr/local/bin ...
       Copying coraenv to /usr/local/bin ...


    Creating /etc/oratab file...
    Entries will be added to the /etc/oratab file as needed by
    Database Configuration Assistant when a database is created
    Finished running generic part of root script.
    Now product-specific root actions will be performed.
    Relinking oracle with rac_on option
    Using configuration parameter file: /u01/app/19.2/grid/crs/install/crsconfig_params
    The log of current session can be found at:
      /u01/app/grid/crsdata/sspdb02/crsconfig/rootcrs_sspdb02_2019-02-23_01-04-55AM.log
    2019/02/23 01:05:38 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
    2019/02/23 01:05:39 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
    2019/02/23 01:05:39 CLSRSC-363: User ignored prerequisites during installation
    2019/02/23 01:05:39 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
    2019/02/23 01:05:45 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
    2019/02/23 01:05:45 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.
    2019/02/23 01:05:45 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.
    2019/02/23 01:05:50 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.
    2019/02/23 01:05:55 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.
    2019/02/23 01:05:55 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
    2019/02/23 01:06:10 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
    2019/02/23 01:06:11 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
    2019/02/23 01:06:17 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
    2019/02/23 01:06:18 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
    2019/02/23 01:07:47 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
    2019/02/23 01:08:12 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
    2019/02/23 01:08:40 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
    2019/02/23 01:08:58 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
    2019/02/23 01:09:13 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
    2019/02/23 01:09:53 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
    2019/02/23 01:11:46 CLSRSC-343: Successfully started Oracle Clusterware stack
    2019/02/23 01:11:47 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
    2019/02/23 01:14:42 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
    2019/02/23 01:15:35 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded


    Post of Cluster Setup:

    [[email protected] bin]# ./crsctl check cluster -all
    **************************************************************
    sspdb01:
    CRS-4537: Cluster Ready Services is online
    CRS-4529: Cluster Synchronization Services is online
    CRS-4533: Event Manager is online
    **************************************************************
    sspdb02:
    CRS-4537: Cluster Ready Services is online
    CRS-4529: Cluster Synchronization Services is online
    CRS-4533: Event Manager is online
    **************************************************************

    [[email protected] bin]# ./crsctl stat res -t
    --------------------------------------------------------------------------------
    Name           Target  State        Server                   State details
    --------------------------------------------------------------------------------
    Local Resources
    --------------------------------------------------------------------------------
    ora.LISTENER.lsnr
                   ONLINE  ONLINE       sspdb01                  STABLE
                   ONLINE  ONLINE       sspdb02                  STABLE
    ora.chad
                   ONLINE  ONLINE       sspdb01                  STABLE
                   ONLINE  ONLINE       sspdb02                  STABLE
    ora.net1.network
                   ONLINE  ONLINE       sspdb01                  STABLE
                   ONLINE  ONLINE       sspdb02                  STABLE
    ora.ons
                   ONLINE  ONLINE       sspdb01                  STABLE
                   ONLINE  ONLINE       sspdb02                  STABLE
    --------------------------------------------------------------------------------
    Cluster Resources
    --------------------------------------------------------------------------------
    ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
          1        ONLINE  ONLINE       sspdb01                  STABLE
          2        ONLINE  ONLINE       sspdb02                  STABLE
          3        ONLINE  OFFLINE                               STABLE
    ora.LISTENER_SCAN1.lsnr
          1        ONLINE  ONLINE       sspdb02                  STABLE
    ora.MGMTLSNR
          1        OFFLINE OFFLINE                               STABLE
    ora.OCR.dg(ora.asmgroup)
          1        ONLINE  ONLINE       sspdb01                  STABLE
          2        ONLINE  ONLINE       sspdb02                  STABLE
          3        OFFLINE OFFLINE                               STABLE
    ora.asm(ora.asmgroup)
          1        ONLINE  ONLINE       sspdb01                  Started,STABLE
          2        ONLINE  ONLINE       sspdb02                  Started,STABLE
          3        OFFLINE OFFLINE                               STABLE
    ora.asmnet1.asmnetwork(ora.asmgroup)
          1        ONLINE  ONLINE       sspdb01                  STABLE
          2        ONLINE  ONLINE       sspdb02                  STABLE
          3        OFFLINE OFFLINE                               STABLE
    ora.cvu
          1        ONLINE  ONLINE       sspdb02                  STABLE
    ora.mgmtdb
          1        OFFLINE OFFLINE                               STABLE
    ora.qosmserver
          1        ONLINE  ONLINE       sspdb02                  STABLE
    ora.scan1.vip
          1        ONLINE  ONLINE       sspdb02                  STABLE
    ora.sspdb01.vip
          1        ONLINE  ONLINE       sspdb01                  STABLE
    ora.sspdb02.vip
          1        ONLINE  ONLINE       sspdb02                  STABLE
    --------------------------------------------------------------------------------

    The above mentioned OFFLINE services are needed to be exclusively added to make it ONLINE, Refer to grid-infrastructure-installation-and-upgrade 19c.
    At this point, the GRID Setup is successfully completed.

    Oracle Software installation:

    Unzip the Oracle database software to oracle’s ORACLE_HOME directly and run the runInstaller.sh script.

    as root:
    cd /media/sf_Software/19c/
    unzip -q V981623-01.zip -d /u02/app/oracle/product/19.2
    chown -R oracle:oinstall /u02

    As oracle user:
    cd /u02/app/oracle/product/19.2


    Start the installation now.

    ./runInstaller.sh

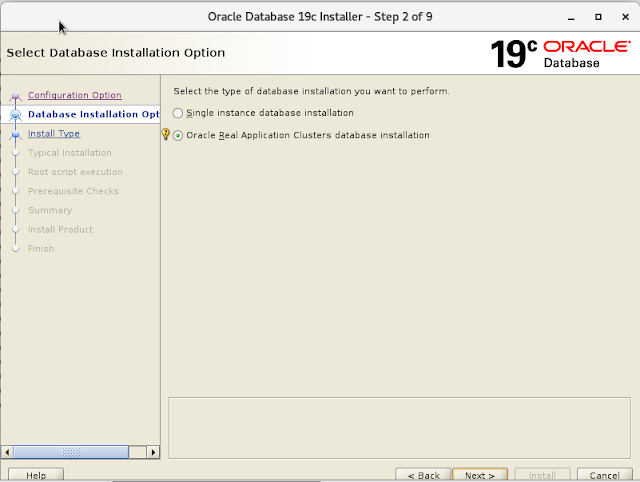

    self-explanatory

    Make sure all the Clusterware Nodes are selected and also setup the SSH connectivity for ‘oracle’ user as below.

    self-explanatory

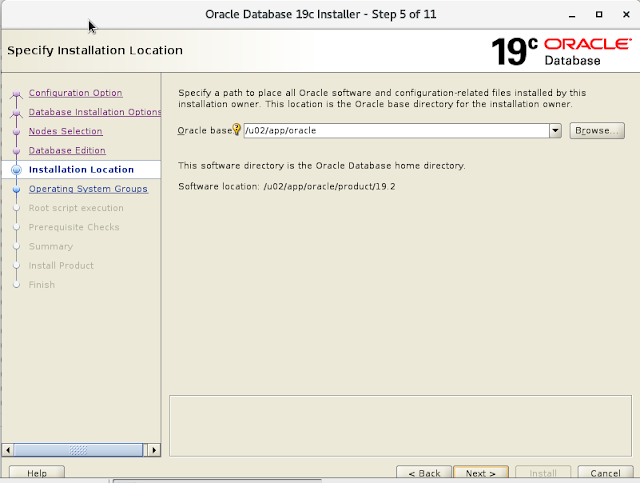

    self-explanatory

    self-explanatory

    Choose the relevant groups, I have selected the default ones.

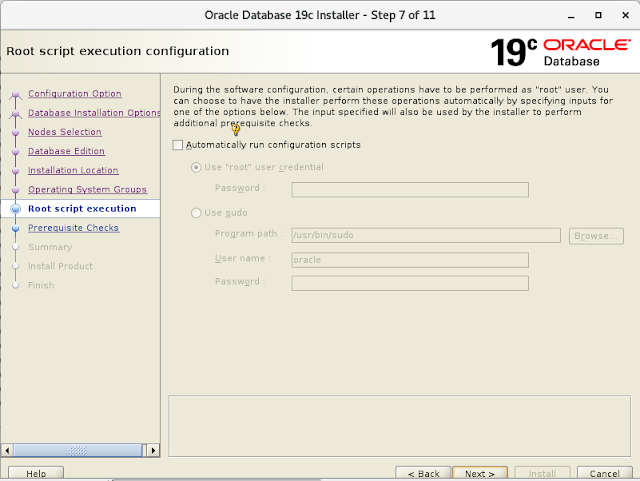

    I will run the root scripts exclusively hence leaving the below one unchecked.

    self-explanatory

    self-explanatory

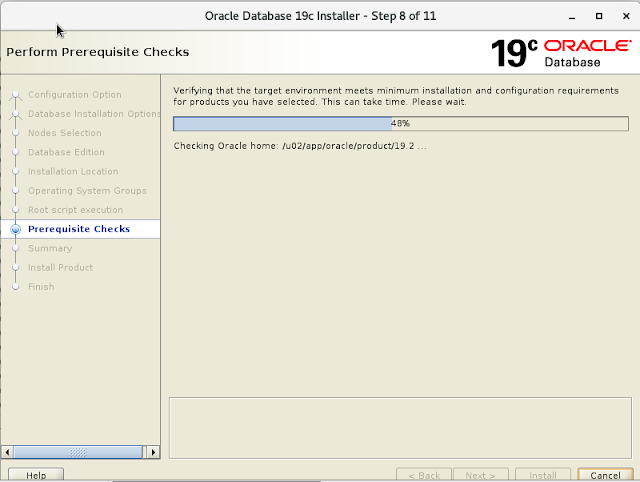

    self-explanatory

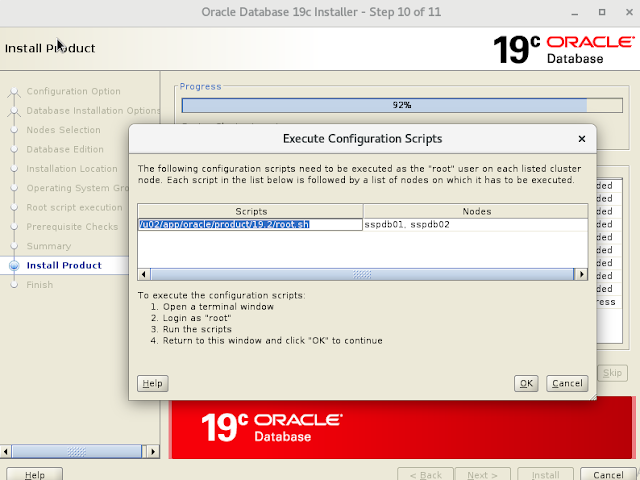

    Run the root.sh script on both nodes.

    self-explanatory

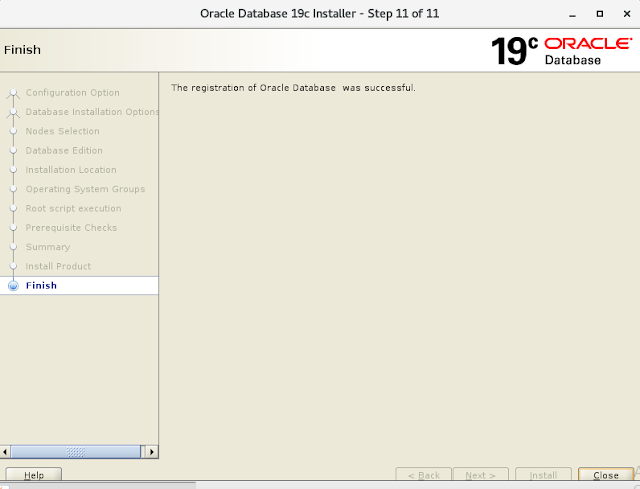

    The database software installation is successfully completed.
